What is the use of these switch buttons for electromagnetic rice noodle machine?

Electromagnetic rice noodle machine What is the use of these switch buttons?

Electromagnetic rice noodle machine is a kind of electromagnetic induction heating, intelligent automatic control of roasted seeds and nuts equipment. It is similar to the working principle of household induction cookers.

It has five characteristics of high efficiency, energy saving, green environmental protection, intelligent control, easy operation, reasonable and durable.

Many customers see the various switch buttons on the operation panel when they just buy the equipment, and they will be overwhelmed.

Below we will introduce the DCCZ5-5 electromagnetic rice-roasting machine produced by Xuchang Zhigong as an example:

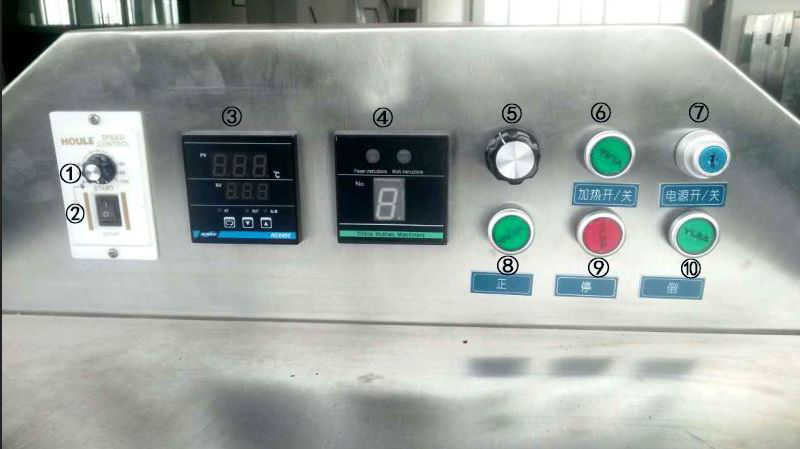

Let's take a look at the DCCZ5-5's operation panel image:

So, what are the functions of these switch buttons?

1. Governor knob (front white): used to adjust the speed of the wok, adjust the acceleration clockwise, adjust the deceleration counterclockwise, and adjust according to the characteristics of the fried products.

2, governor switch (front black): power switch of the governor, press the upper end of the switch, the governor is energized, press the lower end of the switch, the governor is powered off, (Note: when the governor is powered off , the wok does not turn)

3. Thermostat (front black): PV displays the real-time temperature in the wok, and SV shows the preset demand temperature. Press the button in the lower left corner to set the demand temperature. Press the up button to increase or decrease the value. After setting it, press the button in the lower left corner to confirm and exit the setting. When the PV value is lower than the SV value, the heating is normally performed; when the PV value is equal to the SV value, the heating is automatically stopped and the alarm is issued; when the PV value is lower than the SV value again, the heating is automatically started, and thus the heating is cycled to achieve the constant temperature purpose.

4, heating gear display (front black): display the heating gear position, can display "one", "1", "2", "3", "4", "5" in turn, when displaying "one" Without heating, the higher the gear position, the greater the power and the faster the heating.

5. Heating gear adjustment knob (front white): used to adjust the heating gear position, adjust the gear position clockwise, and adjust the gear position counterclockwise.

6, "heat on / off" (front green): rice noodle machine heating switch button, press the light to start heating, press again when the light is off to stop heating. Pre-heating is generally required before roasting.

7. “Power On/Off” (front blue): The main switch of the rice noodle machine is turned off when the keyhole is vertical and turned on when the keyhole is horizontal.

8, "positive" (front green): the wok turns the clock clockwise, press

With this button, the indicator light is on and the wok is turned clockwise. At this point, you can start to roast the goods.

9, "stop" (front red): stop the roasted seeds and nuts button. Before shipping, you should press this button first, the indicator light will be on, and the wok will stop rotating.

10, "pour" (front green): the wok turns the button counterclockwise, press this button, the indicator light is on, the wok rotates counterclockwise, at this time can automatically discharge, roasted seeds and nuts are over.
